Charge-Seed

A breakout board for the Daisy Seed.

View project on GitHub

Design

Our goal is to create a breakout board that includes the pinout diagram so that you have the reference information that you need to work with the Daisy Seed.

Prototype

We have just sent v0.1 of our Charge Seed Breakout Board for production.

2D Render

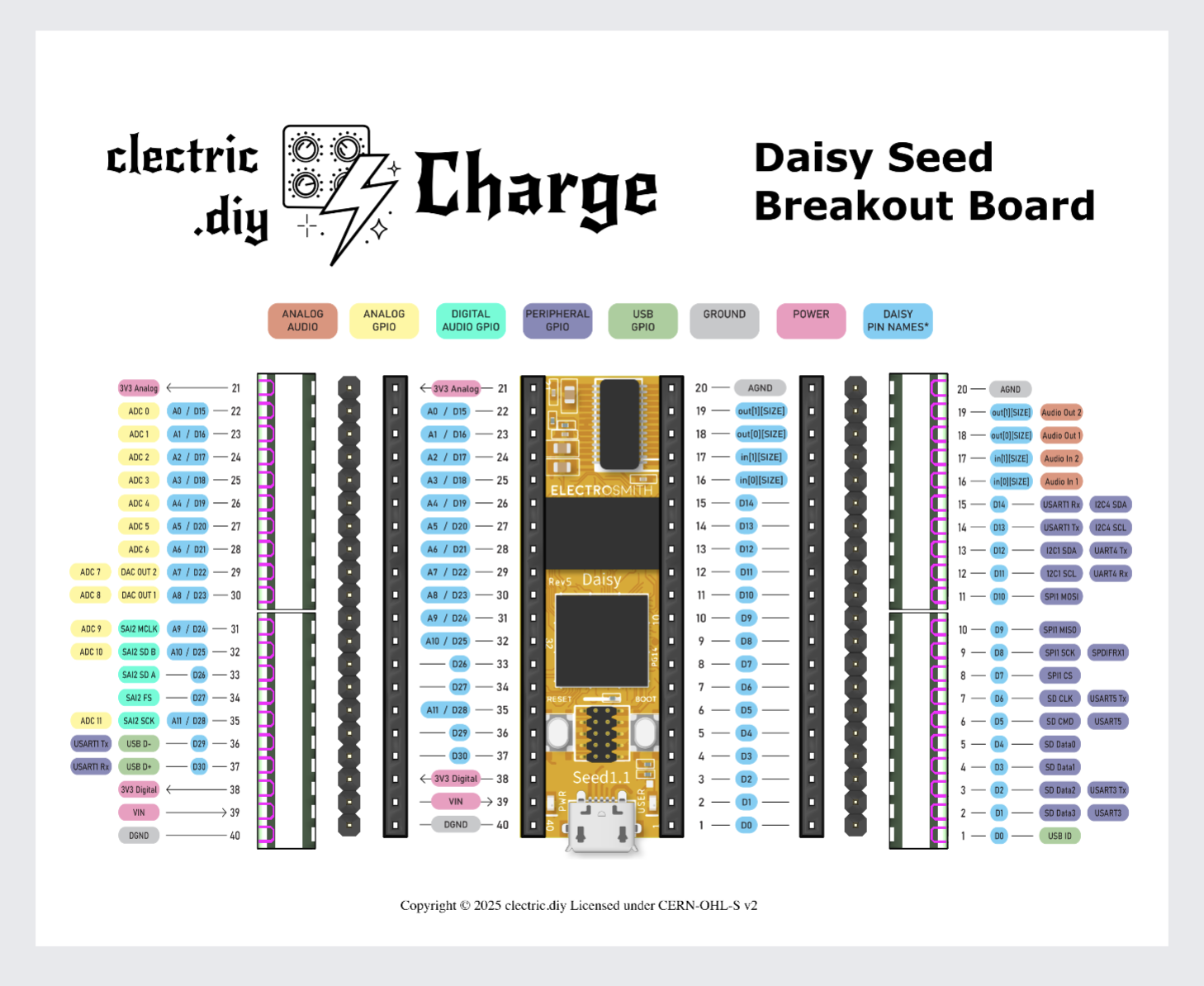

2D perspective render of v0.1 of the breakout board

3D Render

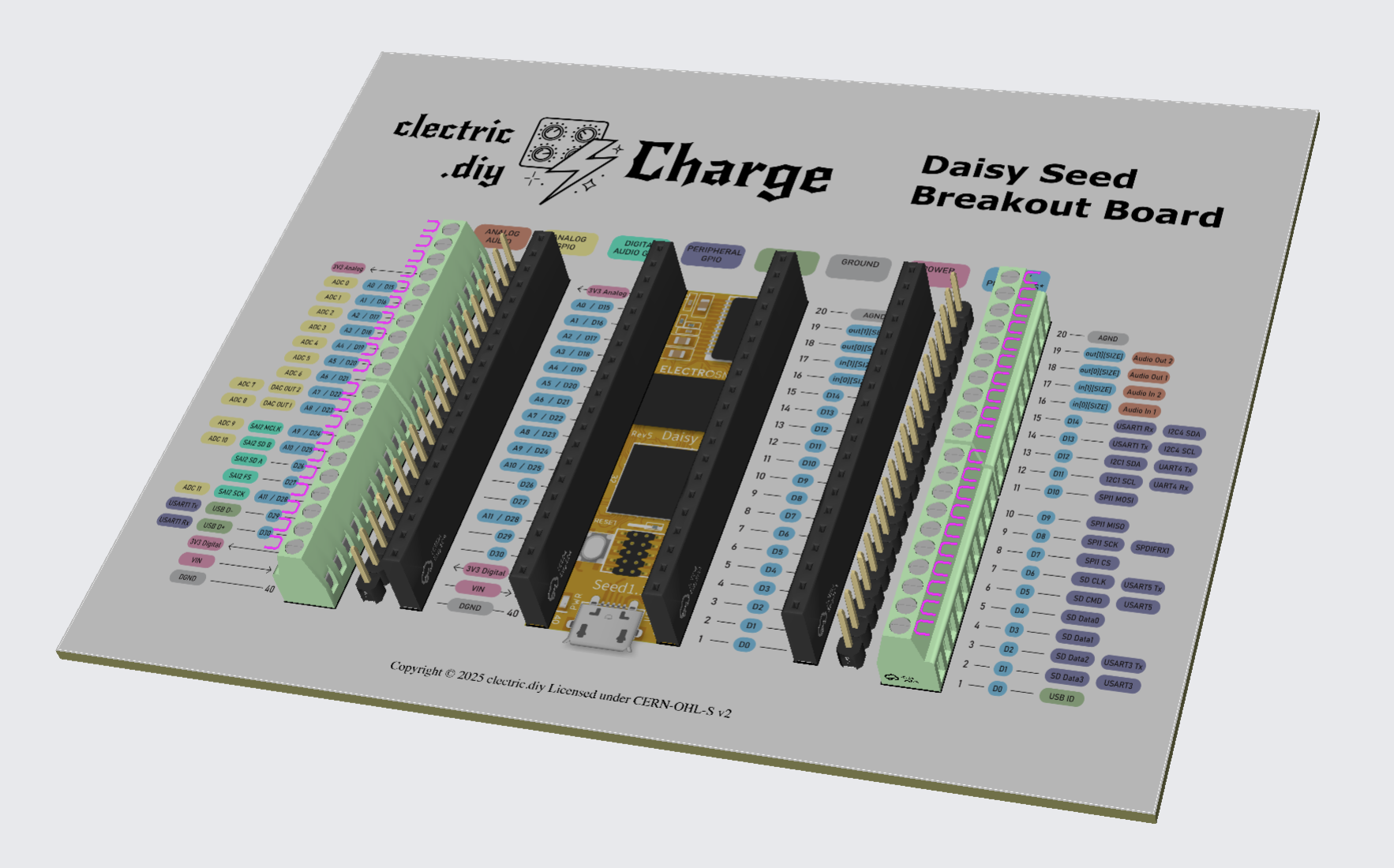

3D perspective render of v0.1 of the breakout board

Caveat

The PCB fabricator that we use requires the use of their proprietary software to add the images, so while the images are available here, there are extra steps to put them on the board.

Feedback

Constructive feedback is welcome!

License

This project is open hardware under the CERN-OHL-S license.
